CombiSump
Vertical long shaft sump pump according to ISO 2858, EN 733, API 610 (VS4)
A sump pump engineered to EN 733 (DIN 24255), ISO 5199, ISO 2858/EN 22858, and API 610/API 682 standards. The design features a submerged pump casing with dry motor construction, suitable for thin liquids in industrial applications.
Scroll for more info
Product Features
- Standardized, modular construction with optional magnetic drive
- Customizable sump depth up to 10 meters
- High-efficiency impeller with closed design and back vanes
- Multiple shaft sealing options (oil seal, mechanical seal, gland packing)
- Silicon carbide radial bearings lubricated by pumped liquid
- API 610/API 682 versions for hydrocarbon industries
- Multiple discharge flange standards (ISO 7005, ANSI B16.5)
- Vapor-tight or pressurized mounting plates
- Suitable for water, chemicals, effluent, and hydrocarbons
- ATEX certified
Technical Data
| Casing | Cast iron, nodular cast iron, bronze, stainless steel, alloys, duplex |
| Impeller | Cast iron, bronze, stainless steel, alloys, duplex |
| Maximum Capacity | 1,500 m³/h |
| Maximum Delivery Head | 160 m |
| Maximum Liquid Temperature | 160°C |
| Maximum Pressure | 1,600 kPa (16 bar); API 610: 3,500 kPa (35 bar) |
| Maximum Viscosity | 200 mPas |
| Maximum Speed | 3,600 rpm |
Suitable Media: Water, chemicals, effluent, and hydrocarbons

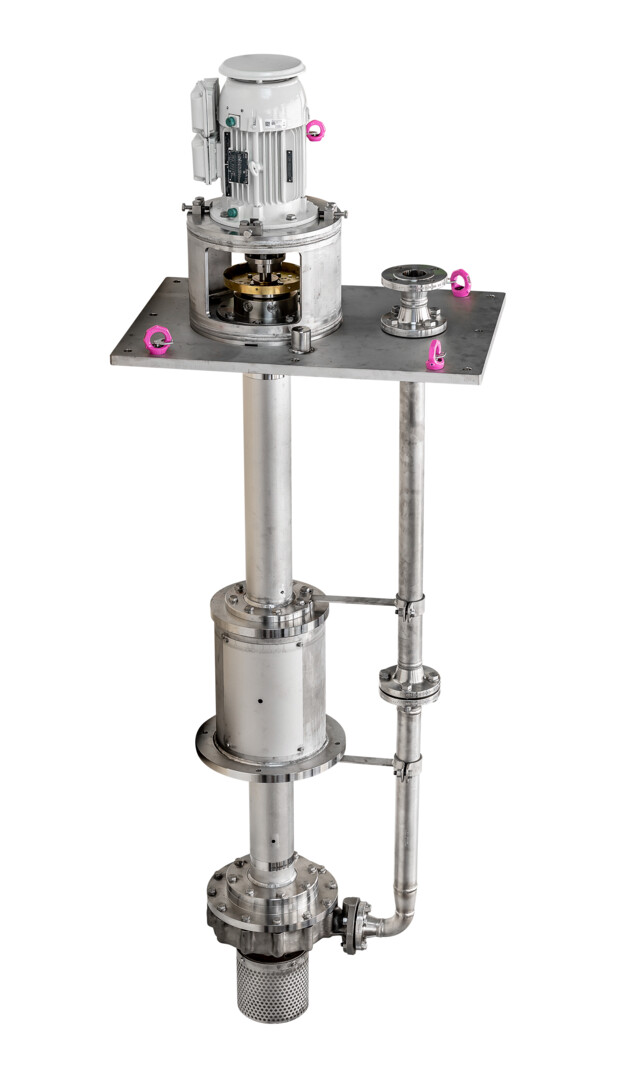

Product Images
Need Parts for Your CombiSump?
Keep your CombiSump running at peak performance with genuine SPX FLOW - Johnson Pump spare parts. We stock a comprehensive range of replacement parts and can source any component you need.
- Mechanical seals and seal kits
- Impellers and wear rings
- Bearings and shaft assemblies
- Complete overhaul and repair kits
Quick Spare Parts Inquiry
Send us a photo of your pump tag and we'll identify the parts you need.
Take a photo of the pump nameplate
Send it via our contact form or email
Receive your quote ASAP
Or contact us directly:
Ready to Order Your CombiSump?
Contact our experienced team for product specifications, competitive pricing, and expert application support. We're here to help you find the perfect pumping solution.
