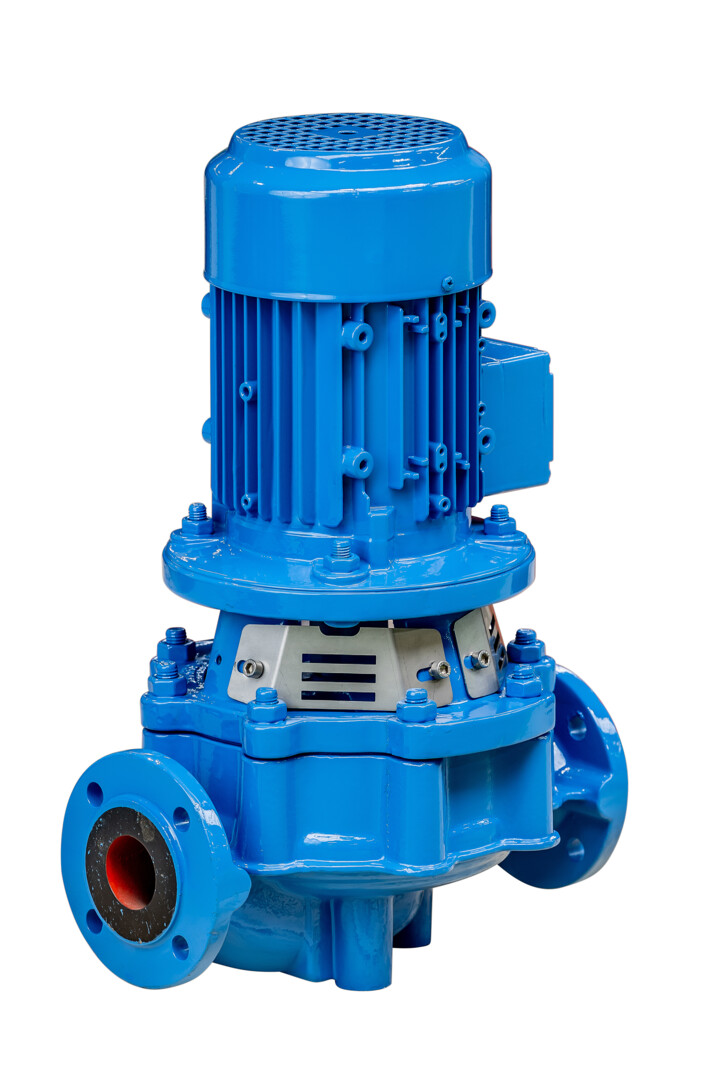

CombiLineBloc
Close-coupled centrifugal pump with in-line ports
An in-line circulating pump featuring close-coupled design with dry electric motor shaft and mechanical seal compliant with EN 12756 (DIN 24690). Easy to install in straight pipelines; inlet and outlet flange connections have the same size and pattern and are positioned in-line.
Scroll for more info
Product Features
- Compact, economical, and space-saving construction
- Versatile with wide range of applications
- Exceptional hydraulic performance
- High-efficiency impeller design
- Closed impeller with back vanes for axial load balancing
- Low NPSH suction inlet casing
- Back-Pull-Out construction for simplified maintenance
- Adaptable for vertical installation
- Standard mechanical shaft seal (EN 12756 / DIN 24690)
- ATEX and CE certified
Technical Data
| Casing | Cast iron, Bronze |
| Impeller | Cast iron, Bronze |
| Maximum Capacity | 450 m³/h |
| Maximum Delivery Head | 100 m |
| Maximum Liquid Temperature | 120°C |
| Maximum Pressure | 1000 kPa (10 bar) |
| Maximum Speed | 3,600 rpm |
Suitable Media: Clean, slightly contaminated thin liquids
